At the begining of 2020, the NANOVNA-H updated to NANOVNA-H Rev3.4
1. Optimized the electric bridge and made full use of the harmonics of Si5351. Now it can measure to 1.5GHz with 5th harmonic;
2. When the fundamental wave is used, the CH0 output level is increased to 0 dBm, and the reflection measurement is more accurate;
3. Solve the abnormality of NanoVNA-H around 6MHz before;
4. The redesigned power management circuit further reduces power noise, reduces USB power interference, reduces charging current, and protects the battery;
5. Optimized PCB layout to accommodate 650mAh battery;
6. Reserve UART interface for easy DIY expansion.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
New product: NANOVNA-H4, with 4 inch LCD display,1950mAh battery
Click here to buy it
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
This is a DIY product with vector network measurement function. It includes a 2.8-inch touching screen, TX/RX measurement, can determine the complete S11 and S21 parameters, if you need to get S12 and S22, you need to manually replace the transceiver port wiring.
Features:
The PC control software can export Touchstone (snp) files, which can be used for various radio design and simulation software.
The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 900MHz.
It is mainly for the study of customers who can DIY, you need to prepare the SMA cable yourself.
It has no metal shield. The main advantage is that users with strong hands-on ability can open the machine to view the circuit structure. However, when measuring frequencies above 300M, it is easy to be interfered by other signals. So this product is recommended for learning principles and use at lower frequencies.
The 50k-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic.
The extended 300M-600MHz band provides better than 50dB of dynamics, and the 600M-900M band is better than 40dB of dynamics.
Small and portable, easy to use, this project aims to provide an RF gadget but useful instrument for enthusiast.
Specifications:
Material: PCB
Color: black plastic case
Measurement frequency: 50KHz~300MHz (50KHz~900MHz, enable extended firmware)(the products will be updated with the latest firmware before shipping, the actual measurement frequency is 50KHz~900MHz)
RF output: -13dbm (maximum -9dbm)
Frequency accuracy: <0.5ppm
Measurement range: 70dB (50KHz-300MHz), (50dB (300M-600MHz), 40dB (600M-900MHz) enable extended firmware)
Port SWR: <1.1
Display: 2.8 inch TFT (320*240)
USB interface: USB type-C
Communication mode: CDC (serial)
USB: 5V 120mA
Battery: 3.7v battery
Number of calibration points: 101 (fixed)
Number of scanning points: 101 (fixed)
Display tracking: 4, Marking: 4, Setting save: 5
PCB size: 85.5 * 54 * 11mm / 3.4 * 2.1 * 0.4in (without connectors and switches)
Package weight: 245g

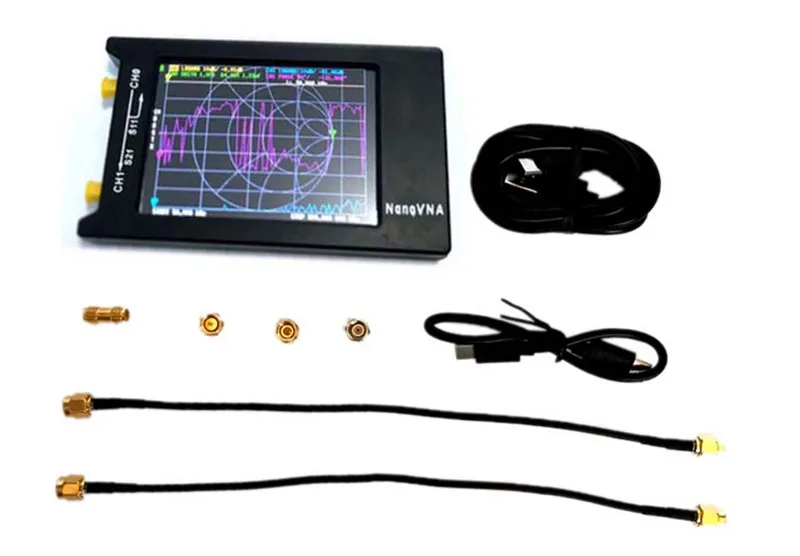

Package include:
1 x NanoVNA-H with 650mAh battery
1 x USB Type-C cable
1 x 25cm USB TypeC to TypeC cable
2 x 20cm SMA male to male RG174 RF cable
1 x SMA calibration set
For delivery time:
Generally, we will dispatch the items within 7 days upon order confirmation; some items may need 15~21 days to get ready for delivery, then we will try our best to dispatch as soon as possible, or we will contact you and offer advice.
For Bulk order:
If you would like to place a bulk order, please contact us for better price and better delivery cost.
