Features and applications:
1. High reliability and long life
2. Engage in secondary shooting, the total dose exceeds 1ⅹ107rad Si
3. It can be separately installed for the drive of the space rotation mechanism
Ultrasonic motor application fields:
1. As a new type of micromotor, ultrasonic motors are used in the fields of automotive electrical appliances, office automation equipment, precision instruments, computers, industrial control systems, aerospace, and intelligent robots.
2. Has been successfully applied to the camera's auto focus device, transmission device, automatic lifting device, precision plotter, micro-mechanical drive and other fields
EUSM125-1808 technical parameters
| Size |
152ⅹ56.5mm |
| Diameter of axle |
Hollow structure |
| Weight |
320g±30g |
| Working Frequency |
37±3kHZ |
| Working Voltage |
176Vrms |
| Output Power |
≥1.8W |
| Rated Speed |
2rpm |
| Rated torque |
≥1.2N.m |
| Holding torque |
≥1.5N.m |
| Max torque |
≥1.5N.m |
| Max no-load speed |
≥10rpm |
| Start response time |
≤5ms |
| Stop response time |
≤3ms |
| Temperature rising |
≤25℃ |
| Environmental temperature |
1. -10℃-+55℃
2. -40℃-+85℃ |
| Acculative |
1500h |
| Noise |
≤35dB |
Note: 1. Product temperature 2. Special product temperature
The control device of EUSM125-1808
| Size |
Designed according to user requirements |
| Supply voltage |
27V / 24V / 15V |
| Working current |
≤2.0A |
| Working frequency |
37±6KHZ |
| Output waveform |
Similar to sine wave |
| Speed adjustment way |
Frequency adjustment |
| The way of open and stop |
High and low level |
| Environmental temperature |
1. -10℃-+55℃
2. -40℃-+85℃ |
| Storage temperature |
-40℃-+100℃ |

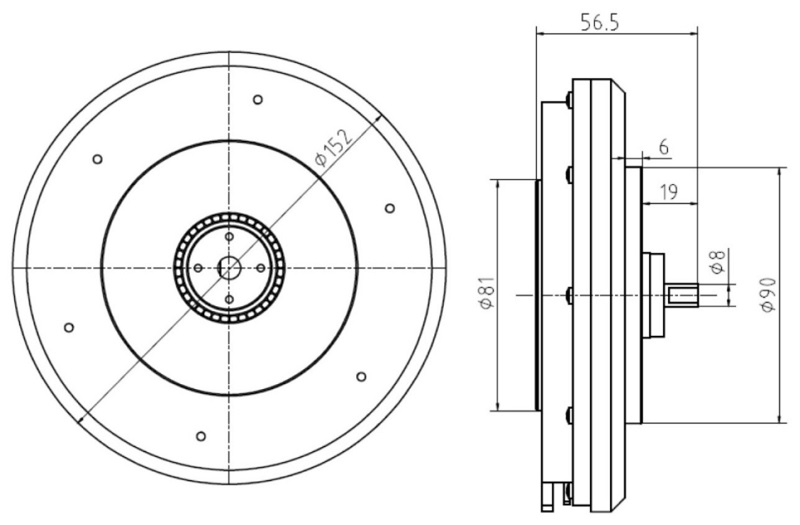

EUSM125-1808 Ultrasonic Motor Outline Interface Diagram
